When evaluating planetary gear reducers for any industrial application, one of the most critical questions engineers ask is: Can this reducer meet my torque, backlash, and precision requirements? This question encompasses the essential performance metrics that directly affect machine efficiency, stability, reliability, and long-term cost. In this in-depth article, we’ll break down these three key factors, explain how they impact your application, and show you how to confidently evaluate whether a planetary gearbox is up to the task.

1. Understanding Torque, Backlash, and Precision

Torque: The Workhorse of Power Transmission

Torque is the rotational force that the gearbox can transmit. It is generally expressed in Newton-meters (Nm) or pound-inches (lb-in). In planetary gear reducers, torque handling is a primary design parameter and determines the size, material, and structure of the gearbox.

Types of torque ratings you should know:

• Nominal Torque: The continuous torque a reducer can handle without overheating.
• Peak Torque: The maximum torque the reducer can endure momentarily during startup or sudden load changes.
• Emergency Stop Torque: The highest torque the reducer can briefly handle in a shutdown situation.

Choosing a reducer with the proper torque rating ensures your motor doesn’t stall, wear prematurely, or overheat under load.

Backlash: Precision’s Silent Killer

Backlash refers to the small gap or “play” between mating teeth in a gear system. It is usually measured in arc minutes. Excessive backlash can introduce positioning errors, vibrations, and inefficiencies.

For applications that require precise movement—like robotics, CNC machining, or pick-and-place equipment—low backlash is critical.

Backlash grades:

• Standard backlash: ≤20 arc minutes
• Low backlash: ≤10 arc minutes
• Ultra-low backlash: ≤5 arc minutes

The ideal level of backlash depends on your accuracy needs. A low backlash gearbox can drastically improve your system’s repeatability and responsiveness.

Precision: The Total Package

Precision in gear reducers refers to the ability to repeat accurate movements over time. It is influenced by multiple factors:

• Backlash
• Torsional rigidity
• Gear profile accuracy
• Concentricity and coaxiality of components

In high-performance systems like surgical robots, camera positioning systems, and wafer handling arms, high precision is non-negotiable.

2. Assessing Your Application’s Requirements

Before choosing a planetary reducer, you must clearly define your application requirements. These include:

Application Load Profile

Is your machine running continuously? Does it experience shocks, reverse loads, or sudden stops? These influence your choice of:

• Torque range
• Load safety factors
• Gear material and heat treatment

Desired Output Speed and Gear Ratio

Gear ratios impact torque output and motion resolution. Planetary reducers can provide ratios from 3:1 to 250:1 or more.

Use the formula: Torque = (Motor torque) × (Gear ratio) × (Efficiency)

Positioning Accuracy

If you’re positioning a robotic arm or moving a CNC axis, calculate the allowed positional error in degrees or millimeters.

Evaluate:

• Backlash requirements (arc minutes)
• Repeatability and rigidity
• Servo control compatibility

3. How VIGE Gear Reducers Meet These Critical Metrics

At VIGE, our planetary reducers are engineered with performance at the core. Here’s how our products meet demanding torque, backlash, and precision requirements across industries:

Torque

• Our carburized and hardened gear sets (HRC58–62) allow continuous torque ratings up to hundreds of Nm.
• Large-diameter input and output shafts handle both radial and axial loads efficiently.
• Dual-bearing outputs improve torque stability during load fluctuations.

Example: Our VGZF series handles up to 800Nm nominal torque in compact housing sizes, ideal for packaging lines and CNC tables.

Backlash

• Helical gear profiles allow for smoother tooth engagement, reducing backlash to as low as 3 arc minutes.
• Precision grinding of gears and shafts ensures minimal play.
• Locking nuts and preloaded angular contact bearings eliminate axial movement.

Custom Options: Ultra-low backlash configurations (<3 arc min) available for robotics and semiconductor equipment.

Precision

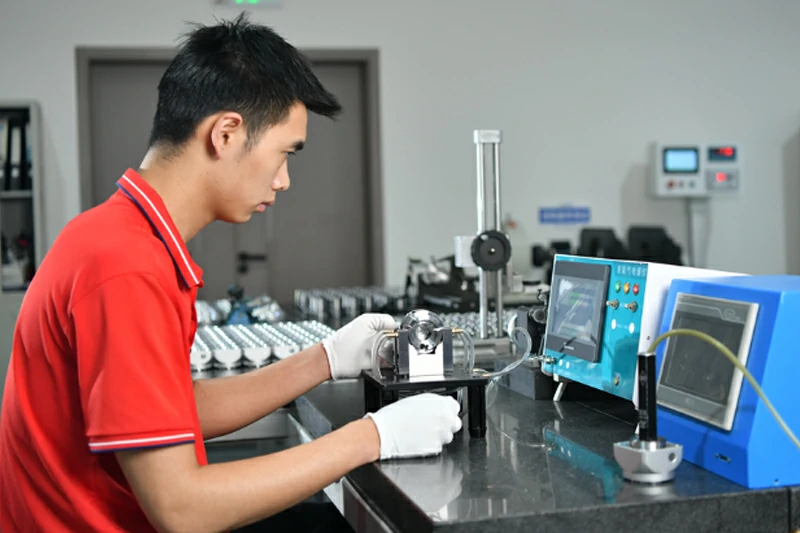

• All critical parts are CNC machined and measured by CMM inspection.
• Output flanges and shaft tolerances are maintained within strict IT6/IT5 grades.
• Our assembly process includes torque testing, noise testing, and backlash validation.

Conclusion: VIGE reducers are trusted in applications requiring <10 microns of motion repeatability.

4. Key VIGE Technologies That Support High Performance

Carburized Helical Gearing

All gears are manufactured with precision hobbed or ground helical profiles, then undergo carburizing and quenching. This creates a hardened outer layer while maintaining a tough core for shock absorption.

Rigid Dual-Bearing Output

Select models include tapered roller or angular contact bearings arranged in wide-span, cage-supported designs to provide maximum torsional rigidity and axial load support.

Modular Design & Customization

Need special flanges or output shafts? Our modular gearbox design allows fast customization for:

• Right-angle gearboxes (L- or T-shape)
• Hollow shaft outputs
• Extended or dual-shaft configurations

Precision Assembly

We control every step, from gear grinding to housing alignment, using advanced inspection tools and experienced technicians.

5. Real-World Examples by Industry

Robotics

• Torque: Medium (20–200Nm)
• Backlash: <5 arc min required
• Application: Multi-axis arms, AGVs, pick-and-place systems
• Solution: VIGE Helical Reducer with ultra-low backlash and hollow shaft for cable pass-through

CNC & Machine Tools

• Torque: High (200–800Nm)
• Backlash: ≤10 arc min
• Application: X/Y/Z linear axes, rotary tables
• Solution: VIGE Straight Reducer with wide bearing base for tool rigidity

Medical Devices

• Torque: Low (5–50Nm)
• Backlash: <5 arc min
• Application: Surgical robots, diagnostic positioning
• Solution: Ultra-silent Helical Reducer with preloaded bearings

Solar Tracking Systems

• Torque: High (300–1000Nm)
• Backlash: ≤20 arc min acceptable
• Application: Elevation/azimuth actuators
• Solution: Right-Angle Hollow Reducer with outdoor sealing

6. How to Verify a Reducer Meets Your Specs

Request Technical Drawings & 3D Models

Examine:

• Output dimensions
• Shaft sizes
• Bolt circle layouts
• Gear ratio options

Ask for Test Reports

• Torque test curves
• Backlash measurements
• Noise levels

Simulate with Your Load

• Run simulations or pilot units on actual equipment to confirm fit and performance

7. Summary: Ask the Right Questions

Before you choose a planetary gearbox, ask:

• What is my required torque range and duty cycle?
• What is the maximum allowable backlash for my application?
• How important is positioning accuracy and reduction efficiency?

A gearbox that appears similar on paper may not deliver the same performance in real-world usage. That’s why VIGE goes beyond catalog numbers—we offer engineering support, testing, and customization to ensure your performance goals are met.

Need help specifying the right reducer? Contact our engineering team today for expert guidance, performance matching, and 3D model support.
